Welded Wire Mesh: Complete Buyer's Guide (2026 Updated)

1. What Is Welded Wire Mesh (and What It Is Not)

Welded wire mesh is a grid made by resistance-welding low-carbon or stainless steel wires at every intersection. The result is a rigid, flat panel that holds its shape — unlike hexagonal woven mesh, which flexes and stretches.

The key difference:

Welded mesh = rigid panel, ideal for fencing, cages, slab reinforcement
Woven mesh = flexible roll, ideal for plaster backing, animal enclosures
Chain link = diamond pattern, used for sports fences and security perimeters

If you need a flat, dimensionally stable panel that will not sag, you need welded mesh.

2. The 5 Specifications You Must Confirm Before Ordering

Every welded mesh panel is defined by five numbers. Lock these down with your supplier before you talk price.

#	Specification	Common Range	What It Affects

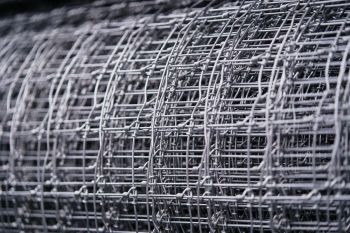

1	Wire diameter (BWG)	BWG 8 to BWG 22 (4.0 mm to 0.7 mm)	Strength, weight, price
2	Mesh opening	1/2" to 6" (12.7 mm to 150 mm)	Visibility, rigidity, application
3	Panel size	1x1 m, 1x2 m, 1.5x3 m, 2.5x6 m	Shipping, installation, waste
4	Surface treatment	Pre-galvanized, Hot-dip galvanized, Electro-galvanized, PVC coated	Corrosion resistance, lifespan
5	Material	Q195, Q235 low-carbon steel / SS304, SS316 stainless	Indoor vs outdoor, food-grade use

Pro tip: The two numbers that drive price are wire diameter and surface treatment. A 4 mm hot-dip galvanized panel can cost 3x more than a 2 mm pre-galvanized panel of the same size.

3. Surface Treatments: How to Pick the Right One

This is where most first-time buyers overpay. There are four common treatments, and each fits a different environment.

Pre-galvanized (GBW) — Zinc coating 30–60 g/m². Cheapest. Indoor use or short-term outdoor (1–3 years).
Electro-galvanized (EG) — Smooth, shiny surface. Decorative use only. Not for outdoor.
Hot-dip galvanized after welding (HDG) — Zinc coating 80–275 g/m². 10–25 years outdoors. Best value for most buyers.
PVC coated (Green / Black / Grey) — PVC layer over galvanized wire. 15–30 years, decorative, used in gardens and public spaces.

Rule of thumb: If your project is outside and lasts more than 3 years, pay for hot-dip galvanized. Skip PVC if you do not need color.

4. The 6 Real Applications That Drive 90% of Orders

Application	Typical Specs	Surface

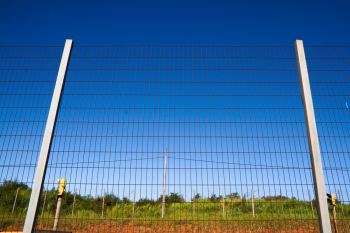

Construction site fence	2.5x6 m x 4 mm x 50x150 mm	Pre-gal or HDG
Concrete slab reinforcement	1x2 m x 4 mm x 100x100 mm	Pre-gal (inside concrete)
Animal cages (rabbit, chicken)	1x1 m x 2 mm x 25x25 mm	HDG or PVC
Machine safety guard	Custom x 3 mm x 30x30 mm	HDG
Garden fence	1.2x2.5 m x 2.5 mm x 50x200 mm	PVC green
Highway noise barrier	2x4 m x 4 mm x 50x100 mm	HDG + PVC

5. 3 Mistakes That Cost First-Time Buyers Real Money

Mistake 1 — Quoting only on price, not on total landed cost.

A 100 USD/panel HDG panel may be cheaper than a 130 USD/panel HDG panel from a different supplier — but the second one includes seaworthy packing, fumigation-free pallets, and a real Mill Test Certificate. Always compare 3 numbers: FOB price + packing + shipping volume.

Mistake 2 — Skipping the sample.

Order at least 3 samples from any new supplier: one for your QC, one for the end user, one to test in your actual environment (salt spray test for coastal projects, UV test for hot climates). A 50 USD sample can prevent a 50,000 USD claim.

Mistake 3 — Accepting "galvanized" without a number.

A panel described only as "galvanized" can mean 30 g/m² or 200 g/m² zinc coating. There is a 3x price difference and a 10x lifespan difference. Always ask: "What is the zinc coating weight in g/m²?" A real factory will answer in one email.

6. How to Verify a Welded Wire Mesh Factory in China

Before you wire any deposit, confirm these four points:

The factory can produce all 4 surface treatments in-house (not trading company)
They have shipped welded mesh to at least 3 continents (ask for BL copies)
They provide Mill Test Certificate (MTC) per batch
They accept third-party inspection (SGS, BV, TUV) before shipment

At Shijiazhuang New Sailing Trade, all four boxes are checked. We have exported welded wire mesh to 47 countries since 2008, with in-house HDG and PVC coating lines.
