Gabion Box:
Premium Wire Mesh Solution for Erosion Control & Infrastructure Projects
Gabion box, also known as gabion basket or gabion cage, is a robust wire mesh container made of low‑carbon steel wire, typically woven into a hexagonal pattern for optimal strength and flexibility. These boxes are filled with natural stones or gravel to create durable, permeable structures widely used in civil engineering, environmental protection, and landscaping projects.
Specifications & Customization
| Item | Details |
| Material | Low‑carbon steel wire; options include stainless steel wire |

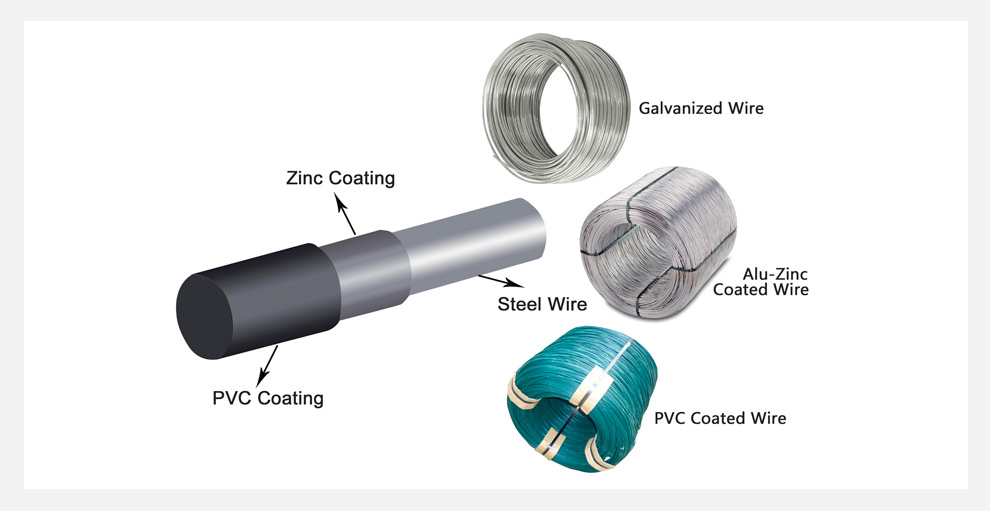

| Surface Treatment | Hot‑dip galvanized, electro‑galvanized, Galfan (zinc‑aluminum alloy) coated, PVC coated (RAL colors available) |
| Mesh Size | 60×80mm, 80×100mm, 80×120mm, 100×150mm, etc. (customizable) |
| Wire Diameter | 2.0–4.0mm (varies by application) |
| Dimensions | Standard sizes: 1×1×0.5m, 2×1×0.5m, 3×1×0.5m; fully customizable to project needs |
| Fittings | Tie Wire,Spiral joints, hog rings, U‑clips, stiffeners for assembly and reinforcement |
| Compliance | EN 10223‑3, ASTM A975, ISO 9001 certified |
Advantages
- Exceptional Durability: Corrosion‑resistant coatings ensure a lifespan of 50+ years with minimal maintenance.
- Flexibility & Adaptability: Conforms to uneven terrain and ground movement without cracking, ideal for seismic zones.
- Cost‑Effective: Low installation and maintenance costs; uses locally sourced stone fill, reducing transportation expenses.
- Eco‑Friendly: Permeable structure promotes natural drainage, prevents hydrostatic pressure buildup, and supports vegetation growth.
- Easy Installation: No specialized labor required; modular design enables quick assembly and on‑site adjustment.
Applications
- Erosion Control: Riverbanks, shorelines, slope stabilization, and soil retention.
- Retaining Walls: Road embankments, terrace gardens, and landscape architecture.
- Flood & Coastal Defense: Flood barriers, breakwaters, and seaport protection structures.
- Infrastructure Support: Bridge abutments, culvert protection, and highway noise barriers.
- Landscaping: Decorative walls, garden features, and outdoor seating areas.
