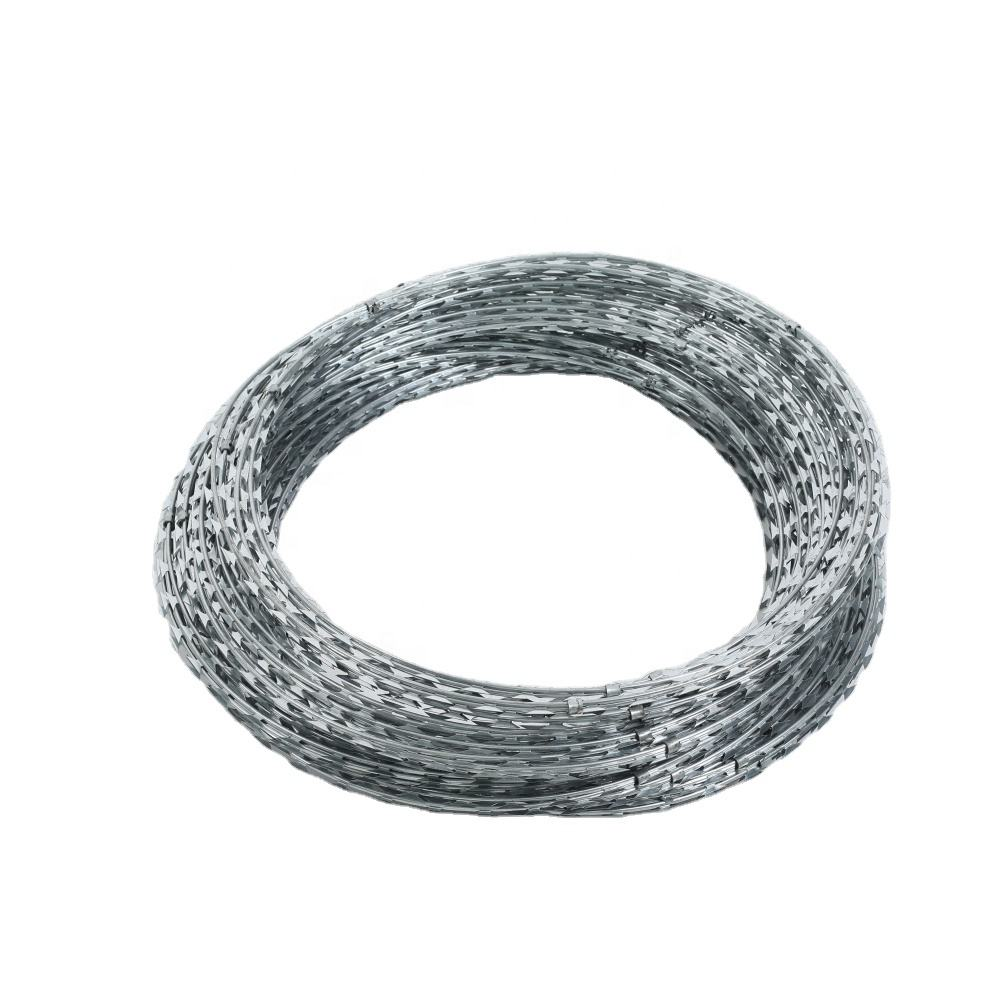

Razor Wire: High-Security Protective Barrier
An upgraded alternative to traditional barbed wire, ideal for anti-climbing & anti-trespassing. Widely used in high-security, industrial, residential & temporary protection scenarios.

Core Advantages

• Strong Deterrence: Sharp serrated edges (galvanized/stainless steel) stop intruders physically & psychologically.
• Long-Lasting: Double anti-corrosion (hot-dip galvanizing + optional PVC/PE coating), 10-30 years service life.
• Flexible Use: 2 types available – concertina (stretchable, quick-install) & straight (easy to fix); fits flat/slope/curved terrains.
• Cost-Saving: Compact structure (saves storage/shipping space) + simple installation + low maintenance.

Specification:

Spiral Razor Wire
Reference Number	BTO-10	BTO-12	BTO-18	BTO-22	BTO-28	BTO-30	CBT-60	CBT-65
Blade Pattern
Model	Thickness		Core Wire Dia.	Blade Length		Blade Width		Blade Space
BTO-10	0.5mm+/-0.05mm		2.5mm+/-0.1mm	10mm+/-1mm		13mm+/-1mm		26mm+/-1mm
BTO-12	0.5mm+/-0.05mm		2.5mm+/-0.1mm	12mm+/-1mm		15mm+/-1mm		26mm+/-1mm
BTO-18	0.5mm+/-0.05mm		2.5mm+/-0.1mm	18mm+/-1mm		15mm+/-1mm		33mm+/-1mm
BTO-22	0.5mm+/-0.05mm		2.5mm+/-0.1mm	22mm+/-1mm		15mm+/-1mm		34mm+/-1mm
BTO-28	0.5mm+/-0.05mm		2.5mm+/-0.1mm	28mm+/-1mm		15mm+/-1mm		45mm+/-1mm
BTO-30	0.5mm+/-0.05mm		2.5mm+/-0.1mm	30mm+/-1mm		18mm+/-1mm		45mm+/-1mm
CBT-60	0.5mm+/-0.05mm		2.5mm+/-0.1mm	60mm+/-2mm		32mm+/-1mm		100mm+/-2mm
CBT-65	0.5mm+/-0.05mm		2.5mm+/-0.1mm	65mm+/-2mm		21mm+/-1mm		100mm+/-2mm

Application:

✅ High-security: Prisons, military bases, nuclear power plants
✅ Industrial: Factories, logistics warehouses
✅ Residential: High-end communities, villas
✅ Temporary: Construction sites, event venues

Our Service

•  Customization (material, size, color)
• ISO-standard quality control
• One-stop: Accessories + installation guide
• Fast delivery (in-stock for standard specs)
